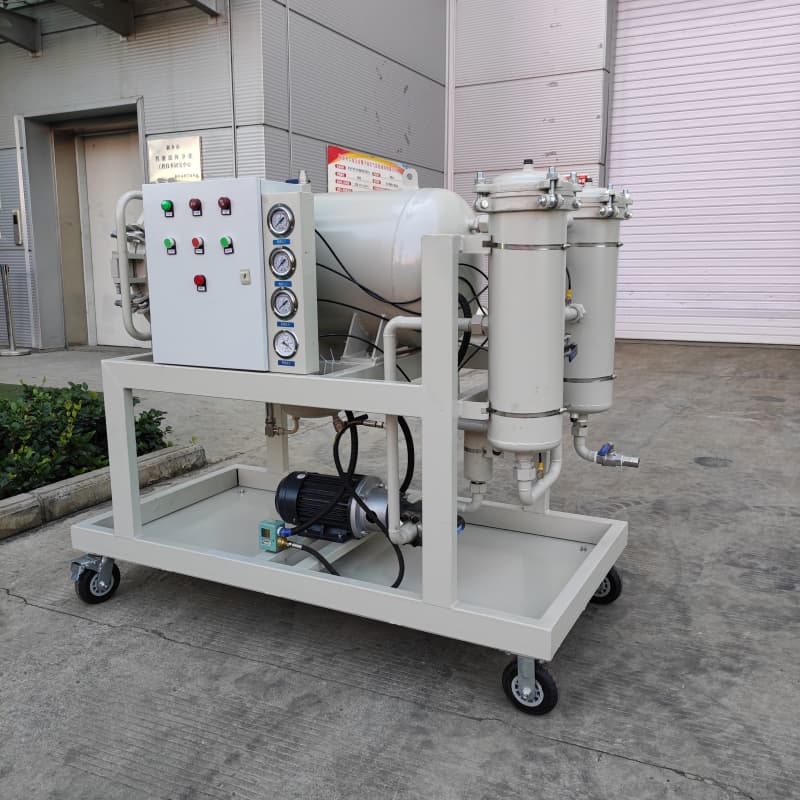

Coalescing Dehydration Purifier

Coalescing Dehydration Purifier

Oil Purifier – Coalescing and Dehydration Purification System The Oil Purifier is a high-efficiency coalescing and dehydration purification system designed to remove water, solid particles, and other contaminants from industrial oils and compatible lubricating fluids. With a rated flow capacity of 50 liters per minute, this system is suitable for industrial oil cleaning, maintenance, circulation purification, and fluid condition management. It is supplied with all necessary accessories for convenient installation and operation. The system handles oil with a viscosity range of 10 to 120 cSt and an operating temperature range of 25°C to 80°C. Its working pressure is up to 0.6 MPa, while the initial pressure drop is less than 0.01 MPa. This low pressure drop helps maintain stable oil circulation and reduces unnecessary energy loss during filtration. Technical Specifications Product Type Oil Purifier Purification Method Coalescing and Dehydration Flow Rate 50 L/min Operating Temperature 25°C to 80°C Oil Viscosity 10 to 120 cSt Working Pressure 0.6 MPa Initial Pressure Drop <0.01 MPa Water Content After Filtration 50–100 ppm Pump Inlet Filtration 100 μm First-Stage Filtration 10 μm Second-Stage Filtration 3 μm Power Supply 380 V AC, 50 Hz, Three-Phase Motor Power 1.1 kW Accessories Complete Accessories Included Multi-Stage Filtration The Oil Purifier uses a progressive multi-stage filtration configuration to improve contaminant removal efficiency. A 100-micron pre-filter is installed before the pump to capture larger particles and help protect the pump from excessive contamination. The first-stage filter provides 10-micron filtration, followed by a 3-micron second-stage filter for finer particle removal. This progressive filtration arrangement distributes the contamination load across multiple stages, helping maintain stable filtration performance. It can help reduce the impact of solid particles on hydraulic components, lubrication circuits, pumps, valves, bearings, and other precision equipment. Coalescing Dehydration Performance The coalescing dehydration process is designed to separate water from oil and improve the condition of contaminated fluids. Under suitable operating conditions, the water content after filtration can reach approximately 50–100 ppm. Effective water removal helps reduce moisture-related problems such as corrosion, oil oxidation, lubrication degradation, and premature component wear. Maintaining cleaner and drier oil can support more stable equipment operation and help reduce contamination-related maintenance requirements. Key Advantages 50 L/min Flow Capacity: Provides efficient oil circulation and purification for industrial applications. Coalescing Dehydration: Helps separate water from contaminated oil and improve fluid cleanliness. Three-Stage Filtration: Combines 100 μm pre-filtration, 10 μm primary filtration, and 3 μm fine filtration. Low Initial Pressure Drop: Less than 0.01 MPa helps support efficient oil flow and...
